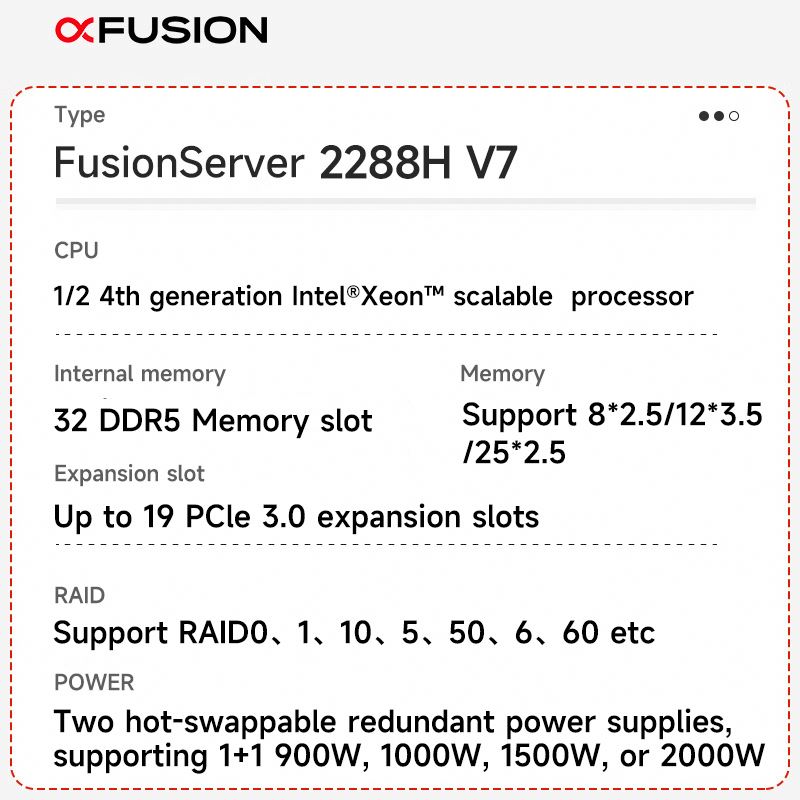

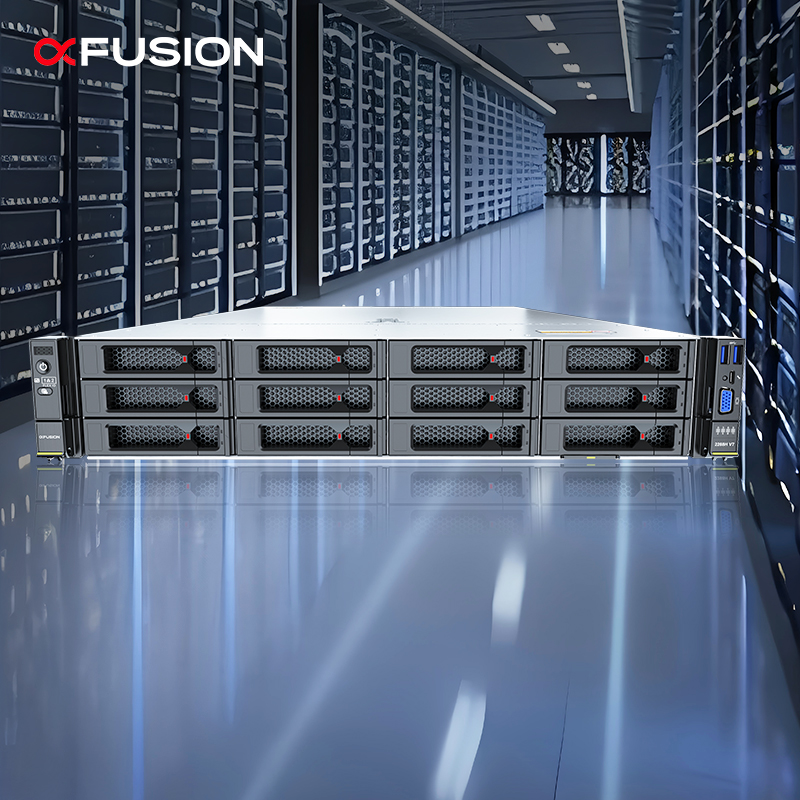

| Server Model | FusionServer 2288H V7 |
| Form Factor | 2U rack server |
| Processors | 1 or 2 x 4th Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Local Storage |
Hot-swappable drives with the following configuration options are supported:
8 to 35 x 2.5″ SAS/SATA/SSD drives
12 to 20 x 3.5″ SAS/SATA drives
4/8/16/24 x NVMe SSDs
36 x E1.S SSDs*
Up to 45 x 2.5″ drives, or 34 x full NVMe SSDs
2 x M.2 SSDs, hardware RAID, and hot swap
|

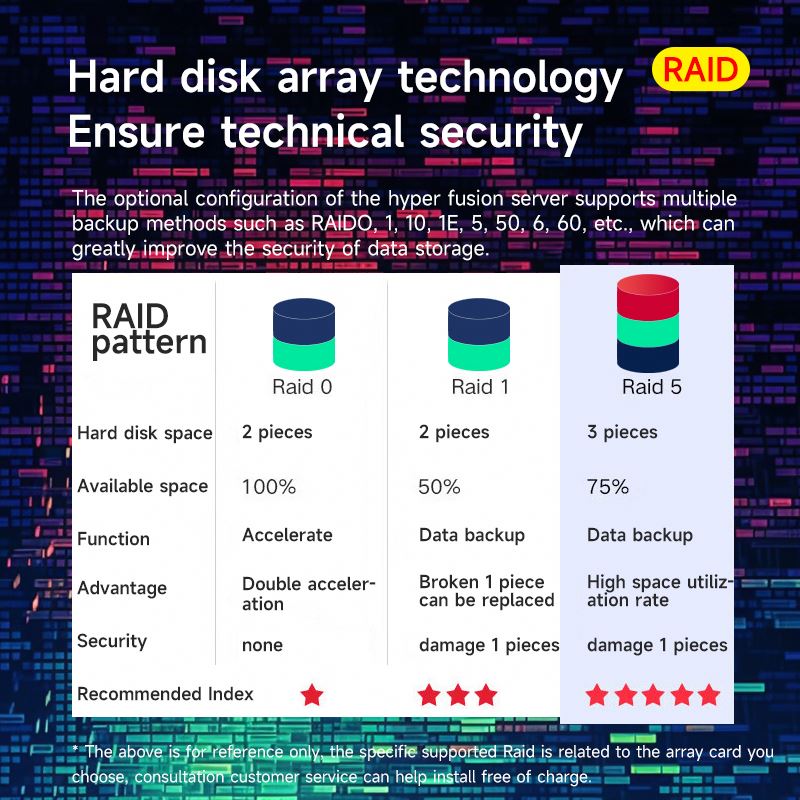

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0 |
| Chip Set | Emmitsburg PCH |
| GPU Accelerator Card | 4 x dual-width or 14 x single-width GPU cards |
| Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. |
| Fan Modules | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Security Features | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
| Operating Temperature | 5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Dimensions (H x W x D) |
Chassis with 3.5″ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5″ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
| Power Supply Units |
2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
1500 W AC Platinum PSUs: 1000 W (input: 100 V to 127 V AC) / 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)
3000 W AC Titanium PSUs: 2500 W (input: 200 V to 220 V AC) / 2900 W (input: 220 V to 230 V AC) / 3000 W (input: 230 to 240 V AC)
2000 W AC Platinum PSU: 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) / 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
|
